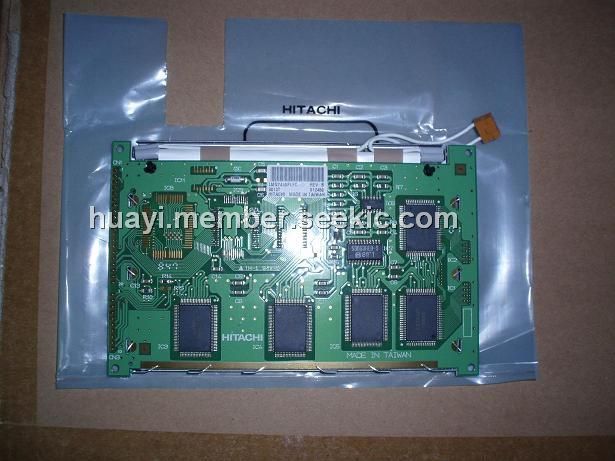

Product Summary

The LMG7410PLFC is a 240×128 DOT.

Parametrics

LMG7410PLFC absolute maximum ratings: (1)Frame frequency: 75Hz; (2)Current rating: 2.5 to 4.0mA; (3)Supply voltage, VDD-VSS: 6.5V; (4)Supply voltage, VDD-VEE: 20.5V; (5)Input voltage, VI: -0.3 to 0.3 +VDD V; (6)Operating temperature, TOP: 0 to 50℃; (7)Storage temperature, TST: -20 to 60℃.

Features

LMG7410PLFC features: (1)Black on white STN type; (2)Transmissive mode; (3)High brightness CFL backlight; (4)High contrast LC material; (5)Built-in LCD controller HD61830B.

Diagrams

LMG7410PLFC block diagram
