Product Summary

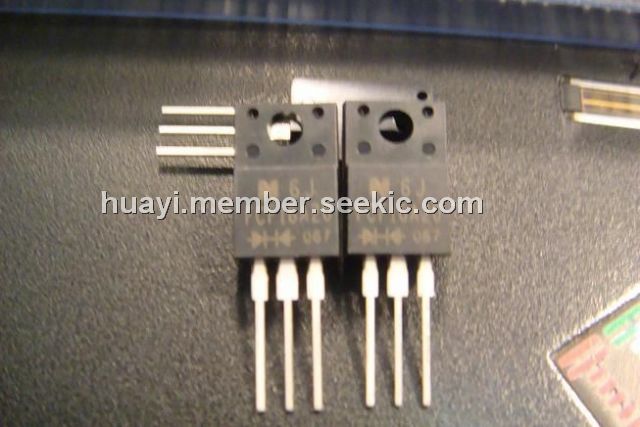

The FCF16A20 is a diode.
Parametrics
FCF16A20 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 200 V; (2)Non-repetitive Peak Reverse Voltage, VRSM: 220 V; (3)Average Rectified Output Current, IO: 16 A; (4)RMS Forward Current, IF(RMS): 18 A; (5)Surge Forward Current, IFSM: 120 A; (6)Operating JunctionTemperature Range, Tjw: -40 to +150℃; (7)Storage Temperature Range, Tstg: -40 to +150℃; (8)Mounting torque: 0.5 N·m.
Features
FCF16A20 features: (1)Fully Molded Isolation; (2)Dual Diodes - Cathode Common; (3)Ultra - Fast Recovery; (4)Low Forward Voltage Drop; (5)High Surge Capability; (6)200 Volts thru 600 Volts Types Available.
