Product Summary

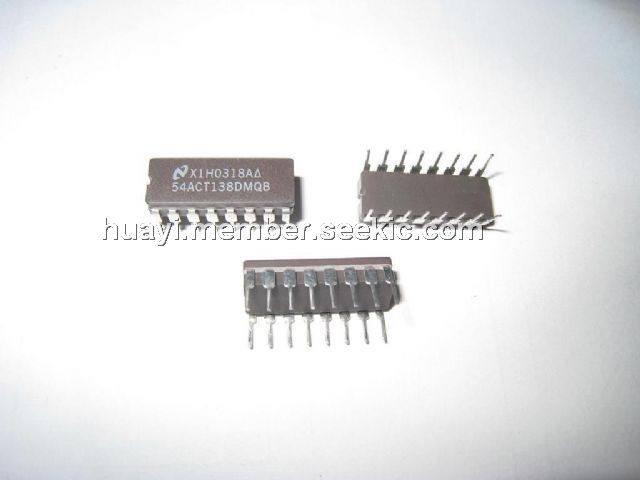

The 54ACT138DMQB is a 1-of-8 Decoder/Demultiplexer. The 54ACT138DMQB is ideally suited for high-speed bipolar memory chip select address decoding. The multiple input enables allow parallel expansion to a 1-of-24 decoder using just three ’AC/’ACT138 devices or a 1-of-32 decoder using four ’AC/’ACT138 devices and one inverter.
Parametrics
54ACT138DMQB absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK), VI = -0.5V: -20 mA; VI = VCC +0.5V: +20 mA; (3)DC Input Voltage (VI): -0.5V to VCC +0.5V; (4)DC Output Diode Current (IOK), VO = -0.5V: -20mA; VO = VCC +0.5V: +20 mA; (5)DC Output Voltage (VO): -0.5V to VCC +0.5V; (6)DC Output Source or Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current; (8)per Output Pin (ICC or IGND) ±50 mA; (9)Storage Temperature (TSTG): -65℃ to +150℃; (10)Junction Temperature (TJ), CDIP: 175℃.
Features
54ACT138DMQB features: (1)ICC reduced by 50%; (2)Demultiplexing capability; (3)Multiple input enable for easy expansion; (4)Active LOW mutually exclusive outputs; (5)Outputs source/sink 24 mA; (6)’ACT138 has TTL-compatible inputs; (7)Standard Microcircuit Drawing (SMD).

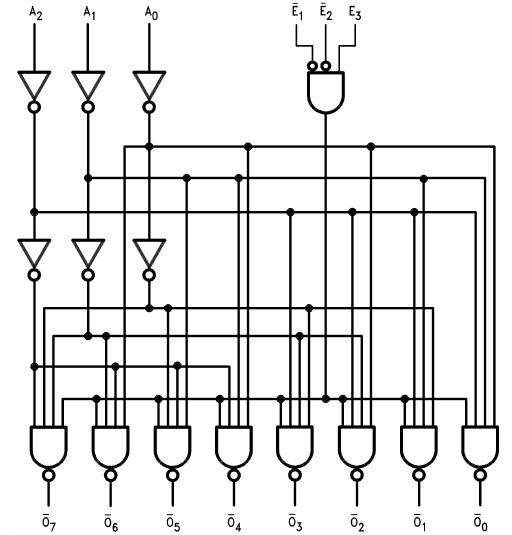

Diagrams
 |
