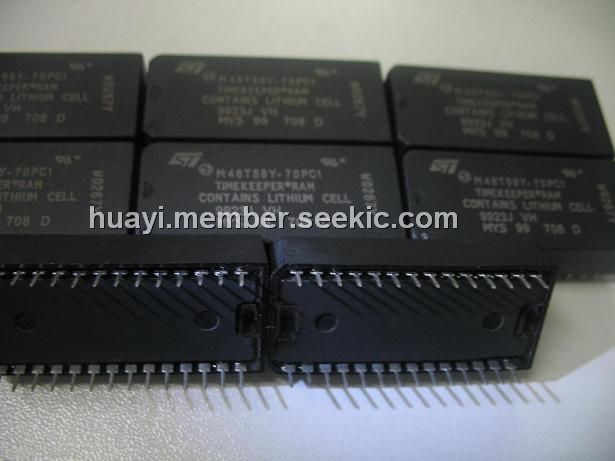

The M48T59Y-70PC is a 64 Kbit 8Kb x8 TIMEKEEPER SRAM. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory and real time clock solution.
Parametrics
M48T59Y-70PC absolute maximum ratings: (1)Ambient Operating Temperature, TA: 0 to 70℃; (2)Storage Temperature (VCC Off, Oscillator Off), TSTG: -40 to 85℃; (3)Lead Solder Temperature for 10 seconds, TSLD: 260℃; (4)Input or Output Voltages, VIO: -0.3 to 7 V; (5)Supply Voltage, VCC: -0.3 to 7 V; (6)Output Current, IO: 20 mA; (7)Power Dissipation, PD: 1 W.
Features
M48T59Y-70PC features: (1)integrated ultra low power sram, real time clock, power-fail control circuit and battery; (2)bytewide ram-like clock access; (3)bcd coded year, month, day, date, hours, minutes and seconds; (4)frequency test output for real time clock; (5)automatic power-fail chip deselect and write protection; (6)write protect voltages (vpfd = power-fail deselect voltage): 4.2v ≤ vpfd ≤ 4.5v; (7)self-contained battery and crystal in the caphat dip package; (8)packaging includes a 28-lead soic and snaphat top (to be ordered separately); (9)soic package provides direct connection for a snaphat top which contains the battery and crystal; (10)pin and function compatible with jedec standard 8k x 8 srams.
