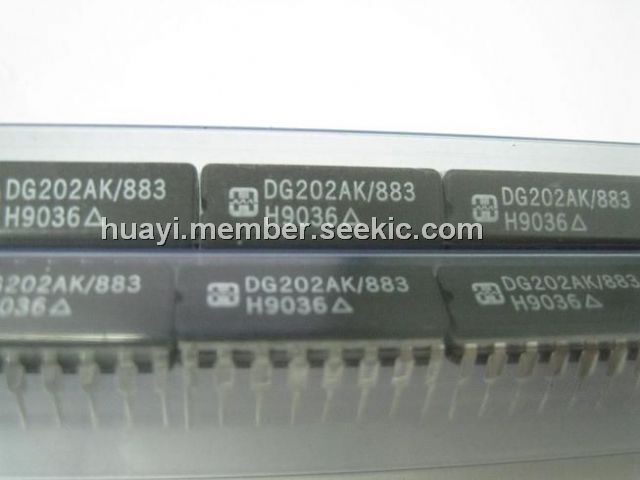

Product Summary

The DG202AK883 is a Quad SPST, CMOS Analog Switch. The DG202AK883 is designed using Intersil’s 44V CMOS process. The bidirectional switche is latch-proof and feature break-before-make switching. Designed to block signals up to 30VP-P in the OFF state, the DG202AK883 offers the advantages of low ON resistance (≤175Ω), wide input signal range (±15V) and provide both TTL and CMOS compatibility. The DG202AK883 is specification and pinout compatible with the industry standard devices.

Parametrics

DG202AK883 absolute maximum ratings: (1)V+ to V-: 44V; (2)V- to Ground: -25V; (3)VIN to Ground: (V-) -2V to (V+) +2V; (4)VS or VD to V+: +2 to (V-) -2V; (5)VS or VD to V-: -2 to (V+) +2V; (6)Current, any Terminal Except S or D: 30mA; (7)Continuous Current, S or D: 20mA; (8)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 70mA.

Features

DG202AK883 features: (1)Input Signal Range: ±15V; (2)Low rDS(ON) (Max): 175W; (3)TTL, CMOS Compatible; (4)Latch-Up Proof; (5)True Second Source; (6)Maximum Supply Ratings: 44V; (7)?Logic Inputs Accept Negative Voltages.

Diagrams

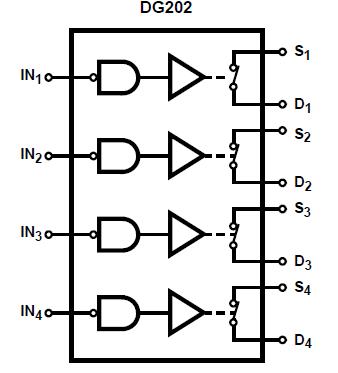

DG202AK883 block diagram
