Product Summary

The TPA3001D1PWPR is a 20-W mono bridge-tied load (BTL) class-D audio power amplifier with high efficiency, eliminating the need for heat sinks. The TPA3001D1PWPR can drive 4-Ω or 8-Ω speakers with only a ferrite bead filter required to reduce EMI. The gain of the amplifier is controlled by two input terminals, GAIN1 and GAIN0. This allows the amplifier to be configured for a gain of 12, 18, 23.6, and 36 dB. The differential input stage provides high common mode rejection and improved power supply rejection.

Parametrics

TPA3001D1PWPR absolute maximum ratings: (1)Supply voltage: VCC, PVCC: -0.3 V to 21 V; (2)Load impedance, RL: ≥3.6 Ω; (3)Input voltage: SHUTDOWN: -0.3 V to VCC + 0.3 V; (4)Input voltage, GAIN0, GAIN1: -0.3 V to 5.5 V; (5)Input voltage, INN, INP: -0.3 V to 7 V; (6)Continuous total power dissipation: (see Dissipation Rating Table); (7)Operating free-air temperature range: -40 to 85℃; (8)Operating junction temperature range: -40 to 150℃; (9)Storage temperature range: -65 to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPA3001D1PWPR features: (1)20 W Into 8-Ω Load From 18-V Supply(10% THD+N); (2)Short Circuit Protection (Short to VCC, Short to GND, Short Between Outputs); (3)Third-Generation Modulation Technique; (4)Low Supply Current: 8 mA Typ at 12 V; (5)Shutdown Control: <1 μA Typ; (6)Space-Saving, Thermally-Enhanced PowerPAD Packaging.

Diagrams

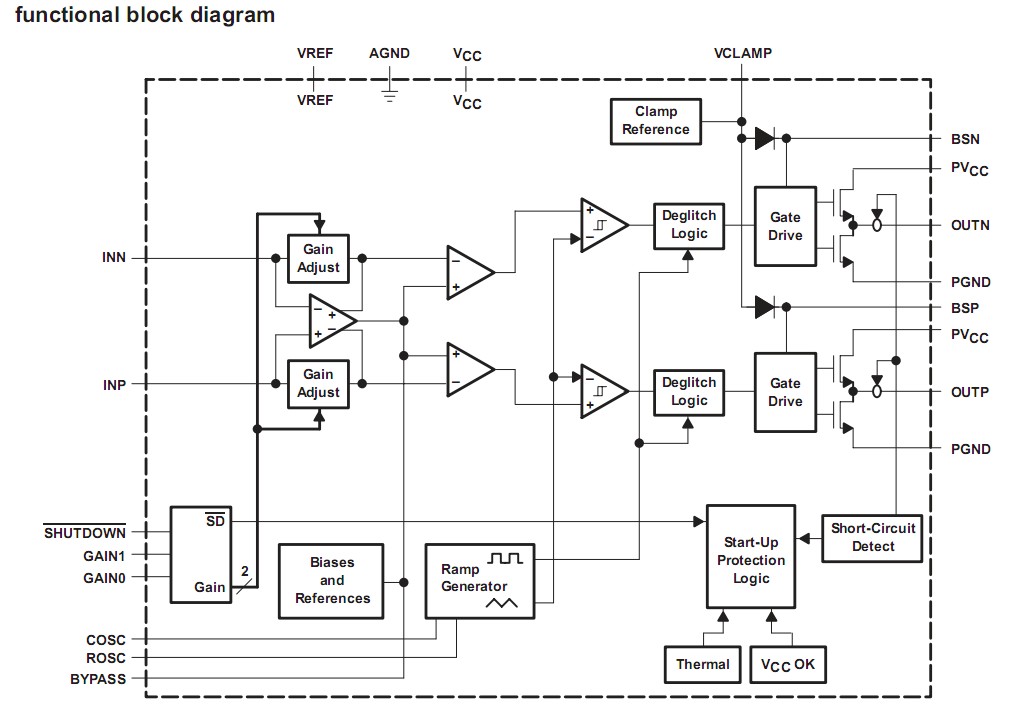

TPA3001D1PWPR functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPA3001D1PWPR
TPA3001D1PWPR
Texas Instruments
Audio Amplifiers Mono High Power Filter-Free Class-D
Data Sheet
0-1505: $2.15
1505-2000: $2.08
TPA3001D1PWPRG4
TPA3001D1PWPRG4
Texas Instruments
Audio Amplifiers Mono High Power Filter-Free Class-D
Data Sheet
0-1605: $2.02
1605-2000: $2.00
