Product Summary
The RA13H4047M is a 13-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 400- to 470-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The RA13H4047M is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.
Parametrics
RA13H4047M absolute maximum ratings: (1)Drain Voltage:17V; (2)Gate Voltage:6V; (3)Input Power:100mW; (4)Output Power:20W; (5)Operation Case Temperature Range:-30 to +110℃; (6)Storage Temperature Range:-40 to +110℃.
Features
RA13H4047M features: (1)Enhancement-Mode MOSFET Transistors (IDD≈0 @ VDD=12.5V, VGG=0V) ; (2)Pout>13W, hT>40% @ VDD=12.5V, VGG=5V, Pin=50mW ; (3)Broadband Frequency Range: 400-470MHz ; (4)Low-Power Control Current IGG=1mA (typ) at VGG=5V ; (5)Module Size: 66 x 21 x 9.88 mm ; (6)Linear operation is possible by setting the quiescent drain current with the gate voltage and controlling the output power with the input power.

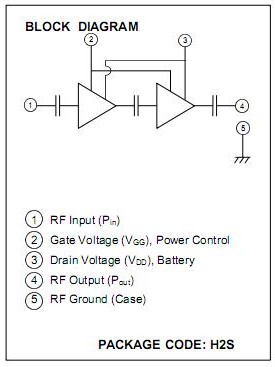

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

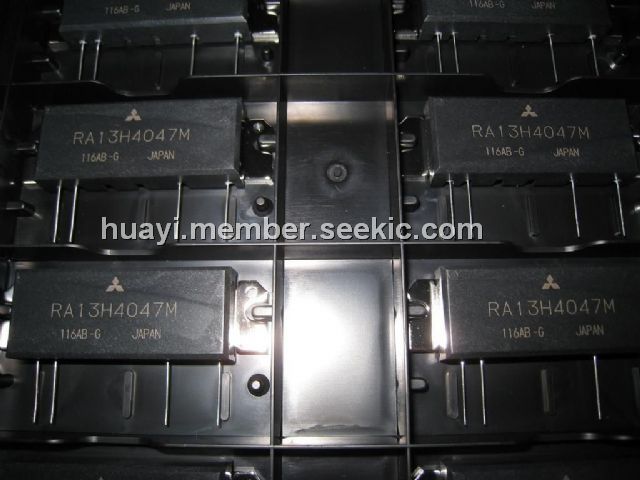

 RA13H4047M |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
RA1316NG3000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RA1316NG6000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RA1320NG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RA13H1317M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RA13H3340M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RA13H4047M |
Other |
|
Data Sheet |
Negotiable |
|
||||
