DS1742-100

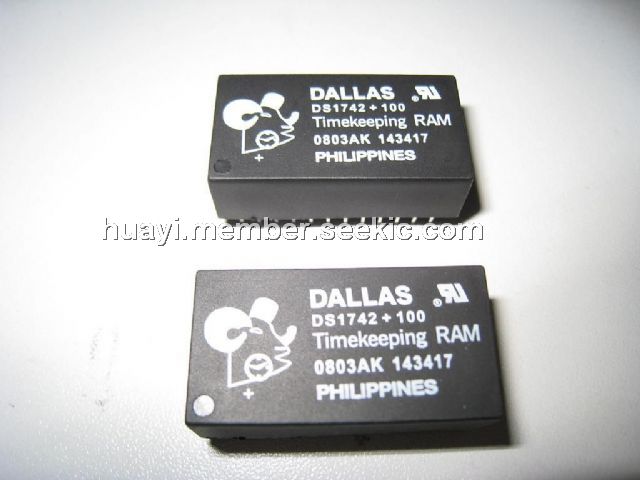

DS1742-100, Y2KC Nonvolatile Timekeeping RAM, DIP-24, 6V, 50mA, Dallas Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: DS1742-100

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lola's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-01

From Other Seller

Part Number:DS1742-100
US $0.01 - 0.02
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

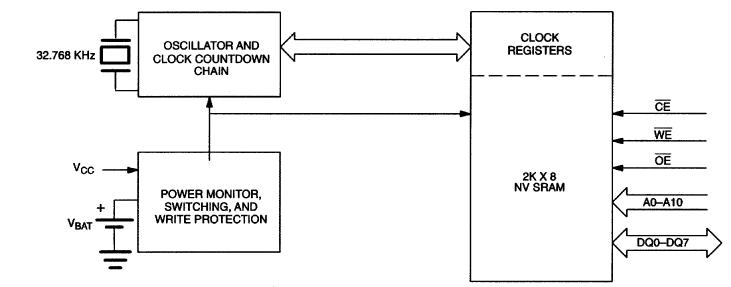

The DS1742-100 is a full-function, year 2000-compliant (Y2KC), real-time clock/calendar (RTC) and 2k x 8 nonvolatile static RAM. User access to all registers within the DS1742-100 is accomplished with a bytewide interface. The RTC information and control bits reside in the eight uppermost RAM locations. The RTC registers contain century, year, month, date, day, hours, minutes, and seconds data in 24-hour BCD format. Corrections for the day of the month and leap year are made automatically.

Parametrics

DS1742-100 absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Storage Temperature Range: -40℃ to +85℃; (3)Soldering Temperature (EDIP, leads): +260℃ for 10 seconds.

Features

DS1742-100 features: (1)Integrated NV SRAM, Real-Time Clock, Crystal, Power-Fail Control Circuit and Lithium Energy Source; (2)Clock Registers are Accessed Identically to the Static RAM; These Registers are Resident in the Eight Top RAM Locations; (3)Century Byte Register; (4)Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power; (5)BCD Coded Century, Year, Month, Date, Day, Hours, Minutes, and Seconds with Automatic Leap Year Compensation Valid Up to the year 2100; (6)Battery Voltage Level Indicator Flag; (7)Power-Fail Write Protection Allows for ±10% VCC Power Supply Tolerance; (8)Lithium Energy Source is Electrically Disconnected to Retain Freshness until Power is Applied for the First Time; (9)Standard JEDEC Bytewide 2k x 8 Static RAM Pinout; (10)Quartz Accuracy ±1 Minute a Month at +25℃, Factory Calibrated; (11)Underwriters Laboratories (UL.) Recognized.
